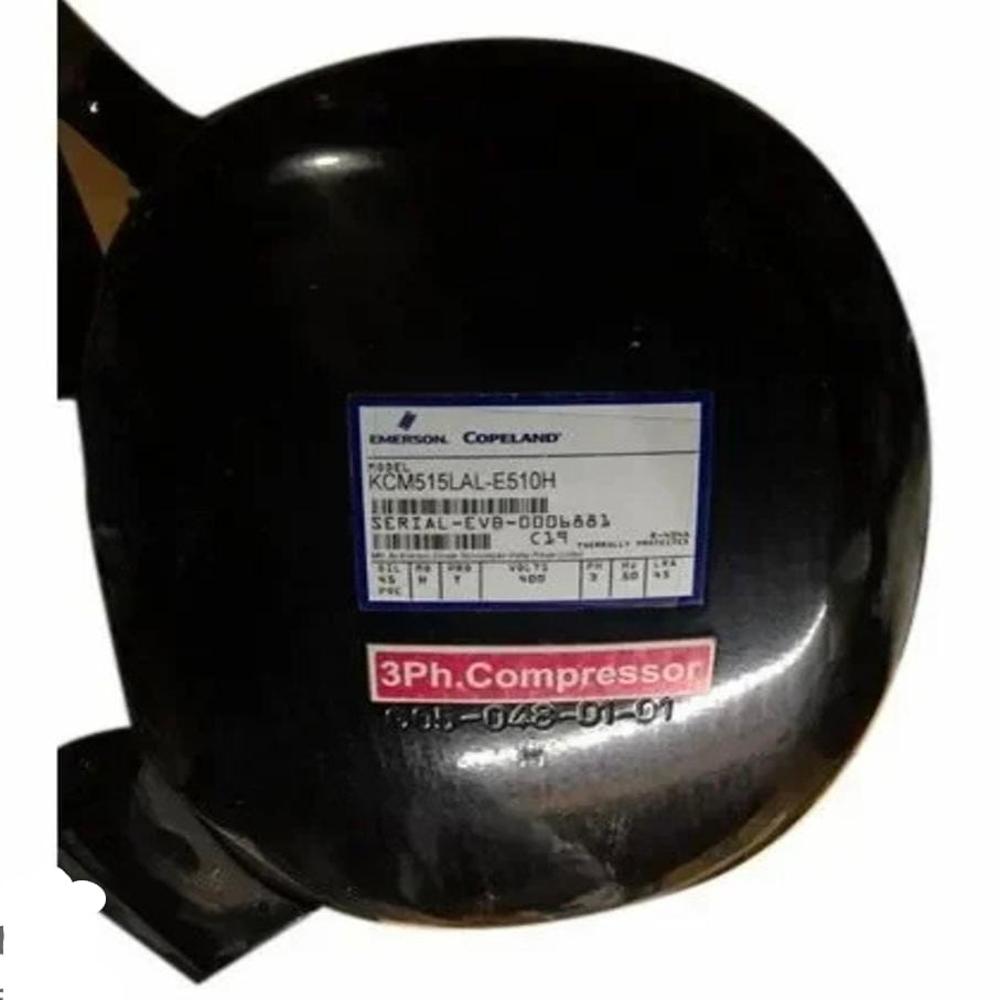

Send InquiryCOPELAND MAKE COMPRESSOR, MODEL: KCM515LAL
Price 41681.25 INR/ Unit
MOQ : 1 Piece
COPELAND MAKE COMPRESSOR, MODEL: KCM515LAL Specification
- Usage
- Primary UsesCold Rooms: Commercial walk-in coolers and storage rooms holding frozen goods.Deep Freezers: Industrial and supermarket chest or reach-in freezers.Food Service Equipment: Display cabinets and low-temperature food preservation units
- Material
- cast iron/steel external shell finished with a durable black coating, copper discharge and suction tubes, and internal steel/alloy mechanical components lubricated with POE oil
- Size
- 254 X 207 X 378 MM
- Height
- 377.9 Millimeter (mm)
- Style
- Other
- Product Type
- hermetic reciprocating compressor
- Refrigerant
- R-404A
- Climate Type
- low-temperature
- Weight
- 32.7 Kilograms (kg)
- Color
- BLACK
- Temperature
- -37.8 C to -6.7 C Celsius (oC)
- Width
- 254 Millimeter (mm)
- Power
- 3.75 HP to 5 HP Horsepower (HP)
- Length
- 206.8 Millimeter (mm)
- Voltage
- 342V and 460V Volt (v)
- Capacity
- 12,500 Btu/h Pcs/hr
- Layer
- hermetic reciprocating compressor for low-temperature commercial refrigeration. It features internal mechanical layers and components like a steel shell, motor windings, piston-cylinder assemblies, and rubber mounting grommets that compress slightly under weight
COPELAND MAKE COMPRESSOR, MODEL: KCM515LAL Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- MUMBAI
- Payment Terms
- Cash in Advance (CID), Cash Advance (CA)
- Supply Ability
- 15 Pieces Per Day
- Delivery Time
- 1 Days
- Sample Policy
- Free samples available with shipping and taxes paid by the buyer
- Packaging Details
- shipped in a secure, heavy-duty single or double corrugated brown box fitted with custom thermocol (expanded polystyrene) cushioning or a secure wooden crate to prevent transit damage and oil spills
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
- Certifications
- TEST CERTIFICATE AVAILABLE
COPELAND MAKE COMPRESSOR, MODEL: KCM515LAL About
The Emerson Copeland KCM515 (commonly model KCM515LAL) is a 3-phase hermetic reciprocating compressor engineered for low- and medium-temperature commercial refrigeration. It features an approximate 3 TR (3-ton / ~5 HP) capacity, a displacement near 89.7 cc/rev, and utilizes R-404A refrigerantKey Specifications
- Brand/Type: Emerson Copeland Hermetic Reciprocating
- Application: Low temperature (deep freezers, cold rooms)
- Cooling Capacity: ~3 TR (~12,500 BTU/h / 3.6 kW)
- Refrigerant: R-404A
- Voltage/Phase: 380415 V, 3-Phase, 50 Hz
- Displacement: ~89.7 cc/rev (~16.14 m/h at 50 Hz)
- Oil Charge: ~1330 cc (POE)
- Core Technical Specifications
- Brand/Model: Emerson Copeland KCM515LAL
- Compressor Type: Hermetic Reciprocating (Connecting Rod Piston Design)
- Application Group: Low Temperature (LBP - Low Back Pressure)
- Nominal Horsepower: 3.75 HP (often marketed in regional listings around 3 to 5 HP class)
- Cooling Capacity: 12,500 BTU/h (3,150 kcal/h or 3,663 Watts) at standard rating conditions
- Refrigerant: R-404A
- Voltage/Frequency: 380415 V, 3-Phase, 50 Hz
- Displacement: 16.14 m/h (approx. 89.7 cc)
- Energy Efficiency Ratio (EER): ~5.1 Btu/W-h
- Application and Usage
- Primary Uses: Cold storage rooms, commercial deep freezers, supermarket display cases, and ice-cream cabinets.
- Design Features: Fixed-speed modulation, internal thermal overload protection, and air-cooled configuration optimized for low-vibration continuous duty
