4 FT AIR CURTAIN

Price 15000.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

4 FT AIR CURTAIN Specification

Diameter of wheel
1200 x 190 x 210 mm Millimeter (mm)

Efficiency (%)
efficiently sealing doorways up to 2.5 to 3.5 meters high while reducing cool air loss

Fan Speed
high fan air speed is 11 meters per second (m/s) and the low fan air speed is 9 m/s

Frequency
50 60 Hz Hertz (HZ)

Power Consumption
200 Watt (W)

Place of Origin
INDIA

Air Velocity
11 to 15 m/s m/s

Power Output
200 Watt (W)

Air Volume
1900 m /h on high speed and 1600 m /h on low speed m3/hr

Power Mode
AC

Power Input
200 Watt (W)

Material
all-metal, arc-shaped body treated with spray powder coating

Operating Voltage
220V to 240V Volt (V)

Mounting
Wall/Window Mount

Voltage
220 240 V. Volt (v)

Air Pressure
9 to 11 PSI

Noise Level
58 db

Dimension (L*W*H)
1200 x 190 x 210 mm Millimeter (mm)

Color
WHITE

Weight
12 Kilograms (kg)

Warranty
12 MONTHS

4 FT AIR CURTAIN Trade Information

Minimum Order Quantity
1 Kilograms

FOB Port
INDIA

Payment Terms
Cash on Delivery (COD), Cash Advance (CA)

Supply Ability
10 Kilograms Per Day

Delivery Time
1 Days

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details
The standard packaging for a 4-foot Totaline air curtain (such as model FM-1212SA3/Y) typically includes a factory-sealed corrugated cardboard box fitted with internal custom molded foam or polystyrene corner protectors to secure the 1200 mm metal chassis, preventing transit damage.

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
TOTALINE CARRIER CERTIFIED

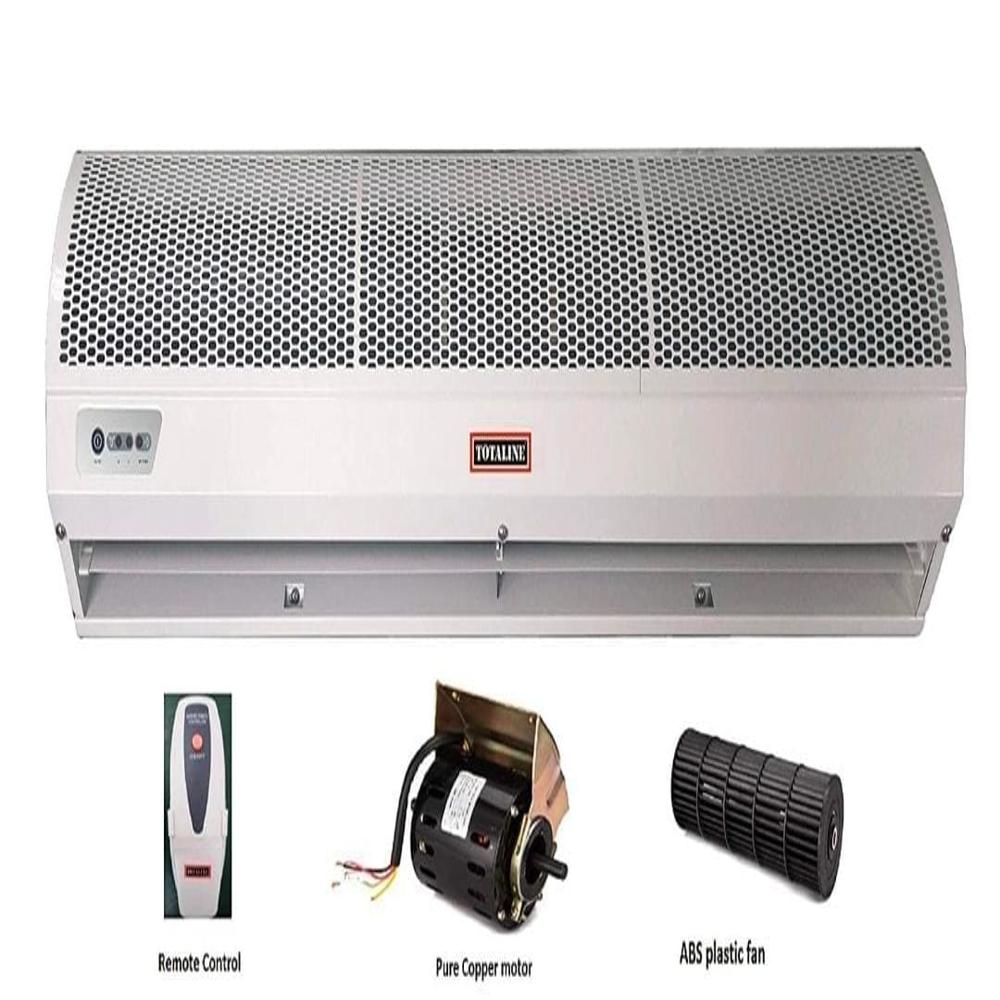

About 4 FT AIR CURTAIN

A 4-foot (1200 mm) air curtain creates a high-velocity barrier of air over commercial or retail doorways to block out heat, dust, and insects while keeping conditioned indoor air inside.

Key Specifications

Length: 4 Feet (approx. 1200 mm)

Power Supply: 220 V, Single Phase, 50 Hz

Power Consumption: 120W to 320W depending on motor and speed settings

Air Velocity: 15 to 23 m/s

Mounting Height: Effective up to 7 to 10 feet
Main Features
- Blocks dust, outdoor heat, and insects

Keeps inside room temperatures stable

Designed for shops, hospitals, and offices

Pure copper motor built for long-term use
Physical Dimensions & Build
- Length / Size: 4 Feet (1200 mm)

Dimensions (L x H x W): 1200 x 190 x 210 mm

Weight: Approx. 12 kg

Casing: Full metal arc shape with anti-rust powder spray
Performance Specs
- Air Velocity (Hi/Low): 11 to 9 meters per second

Air Volume (Hi/Low): 1900 / 1600 m/h

Recommended Mounting Height: 2.5 to 3.5 meters

Noise Level: 58 dB
Electrical Specs
- Voltage / Frequency: 220240 V / 5060 Hz

Phase: Single phase

Power Input: 200 W

Motor: Pure copper motor rated for over 5000 hours of continuous operation
perational Features
- Dual high/low speed control via remote control or unit switches.
